External Load Design Calculator

Introduction

This calculator was developed in accordance with the equations and procedures found in the Handbook of PVC Pipe Design and Construction. The user is encouraged to reference the document if more information on external load calculations is needed. Conservative assumptions have been used to provide a conservative design with appropriate safety factors. Designers are responsible for the proper use of this program for all projects.

The formula used to calculate deflection is called the Modified Iowa Equation and is as follows:

Iowa equation

Where:

  • ∆Y/D = percent vertical pipe deflection, dimensionless
  • K = bedding factor, dimensionless
  • DL = deflection lag factor, dimensionless
  • P = vertical soil pressure due to prism load, psi
  • W’ = live load, psi
  • PS = pipe stiffness, psi
  • E’ = modulus of soil reaction, psi

External Load Design

Nominal Size 4 in.

Looks good!
Please Choose an option.

Pipe Stiffness, PS 129 psi

Looks good!
Please Choose an option.

Unit Weight of Soil, w 120 lb/ft3

Looks good!
Please input Your Unit Weight of Overburden.

Height of Fill above Top of Pipe, H 10 ft

Looks good!
Please input Depth of Burial.

Bedding Constant, K 0.100

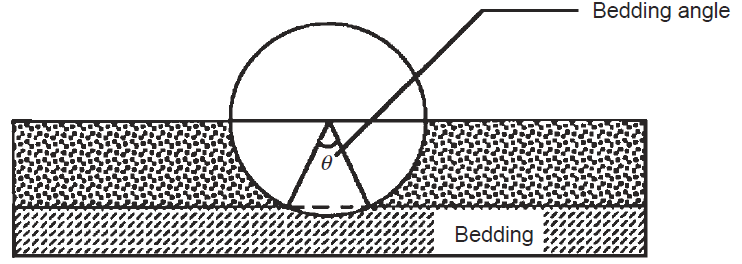

figure

Deflection Lag Factor, DL 1.0

Looks good!
Please input time lag factor.

Modulus of Soil Reaction, E' 1,000 psi

Click here for recommended values Click here to hide recommended values
Soil Type - Pipe Bedding Material
(Unified Classification System)
E' for Degree of
Compaction of Bedding, PSI
Dumped Slight, < 85% Proctor, < 40% relative density Moderate, 85%-95% Proctor, 40%-70% relative density High, >95% Proctor, >70% relative density
Fine-Grained Soils (LL > 50) Soils with medium to high plasticity, CH, MH, CH-MH No data available; consult a competent soils engineer; otherwise, use E' = 0 No data available; consult a competent soils engineer;
otherwise, use E' = 0
Fine-Grained Soils (LL < 50):, Soils with medium to no plasticity, CL, ML, ML-CL, with less than 25% coarse-grained particles
Fine-Grained Soils (LL < 50): Soils with medium to no plasticity, CL, ML, ML-CL, with more than 25% coarse-grained particles Coarse-Grained soils with fines: GM, GP, SW, SP, contain more than 12% fines
Coarse-Grained Soils with Little or No Fines: GW, GP, SW, SC, contain less than 12% fines
Crushed Rock
psi
Looks good!
Please enter E'b

Live Load, W' None

Looks good!
Please enter custom Live Load
If you have any questions, please click here to contact the Regional Engineer covering your area.
